[spring] 스프링 프로젝트 생성하기(mybatis-jsp-oracle)

March 21, 2022

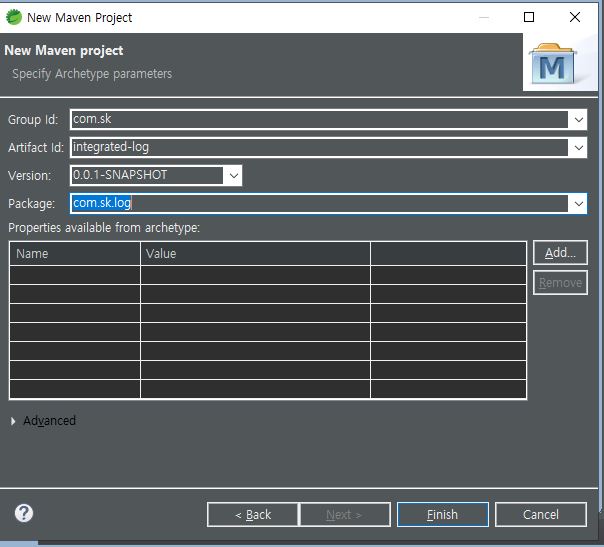

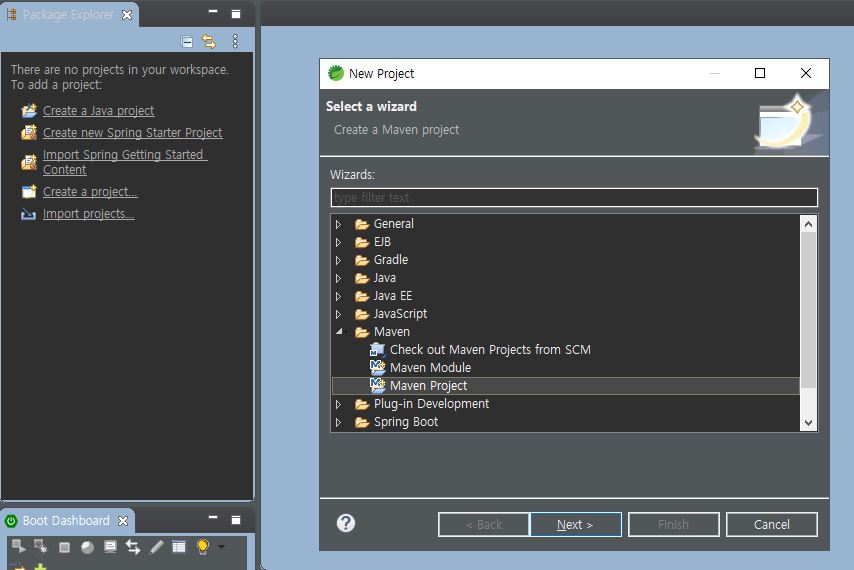

🦥 java maven project 생성

스프링부트를 사용하지 않고, 스프링프레임워크 + 톰캣 개발 환경 셋팅

pom.xml 에 의존관계 라이브러리 설정

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>chn.spring</groupId>
  <artifactId>chn_spring_project</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>

  <properties>
	<java-version>1.8</java-version>
	<org.aspectj-version>1.6.10</org.aspectj-version>
	<org.slf4j-version>2.11.2</org.slf4j-version>
	<logback.version>1.2.3</logback.version>
	<maven.test.skip>true</maven.test.skip>

	<spring.version>4.3.22.RELEASE</spring.version>
	<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>

<dependencies>
<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.0</version>
			<scope>provided</scope>
		</dependency>
		<!-- Jackson JSON Processor -->
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-mapper-asl</artifactId>
			<version>1.9.13</version>
		</dependency>

		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.3</version>
		</dependency>
		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>1.7.26</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>1.7.26</version>
			<scope>runtime</scope>
		</dependency>

		<!-- 2016-05 추가 -joal -->
		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
		</dependency>
		<dependency>
			<groupId>org.logback-extensions</groupId>
			<artifactId>logback-ext-spring</artifactId>
			<version>0.1.4</version>
		</dependency>

		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
			<!-- <systemPath>${project.basedir}/extLib/spring-webmvc-4.3.16.RELEASE.jar</systemPath> -->
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
			<!--<systemPath>${project.basedir}/extLib/spring-jdbc-4.3.16.RELEASE.jar</systemPath> -->
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>4.2.4.RELEASE</version>
			<scope>test</scope>
		</dependency>
		<!--JDK1.5 available -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.4.6</version>
		</dependency>
		<!--Spring Mybatis available -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.1</version>
		</dependency>

		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>1.7.26</version>
		</dependency>
		<dependency>
			<groupId>commons-dbcp</groupId>
			<artifactId>commons-dbcp</artifactId>
			<version>1.4</version>
		</dependency>

		<!-- jstl 추가 2016.04.26 -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

</dependencies>

<build>
	<plugins>
		<plugin>
			<groupId>org.apache.maven.plugins</groupId>
			<artifactId>maven-clean-plugin</artifactId>
			<configuration>
				<filesets>
					<fileset>
						<directory>WEB-INF/lib</directory>
					</fileset>
				</filesets>
			</configuration>
		</plugin>
		<plugin>
			<groupId>org.apache.maven.plugins</groupId>
			<artifactId>maven-compiler-plugin</artifactId>
			<version>3.1</version>
			<configuration>
				<source>${java-version}</source>
				<target>${java-version}</target>
				<showWarnings>true</showWarnings>
				<showDeprecation>true</showDeprecation>
			</configuration>
		</plugin>
		<plugin>
			<groupId>org.apache.maven.plugins</groupId>
			<artifactId>maven-war-plugin</artifactId>
			<configuration>
				<webResources>
					<resource>
						<directory>${build.sourceDirectory}</directory>
						<targetPath>WEB-INF/classes</targetPath>
					</resource>
				</webResources>
			</configuration>
		</plugin>
	</plugins>
</build>

</project>

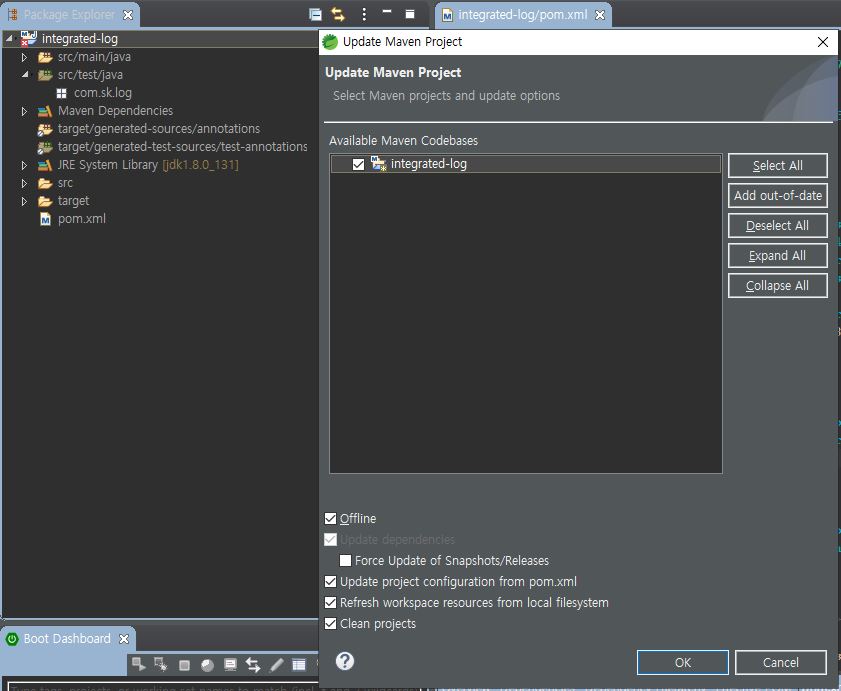

jdk 8 로 변경 후에 maven update 를 해준다.

src/webapp/WEB-INF/web.xml 파일을 생성한다.
web.xml 내용

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>
			/WEB-INF/context/applicationContext.xml
		</param-value>
	</context-param>

	<filter>
   		<filter-name>CharacterEncodingFilter</filter-name>
    	<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    	<init-param>
      		<param-name>encoding</param-name>
      		<param-value>UTF-8</param-value>
    	</init-param>
    	<init-param>
      		<param-name>forceEncoding</param-name>
      		<param-value>true</param-value>
    	</init-param>
  	</filter>

  	<filter-mapping>
    	<filter-name>CharacterEncodingFilter</filter-name>
    	<url-pattern>/*</url-pattern>
  	</filter-mapping>

	<servlet>
		<servlet-name>integrated-log</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>
                /WEB-INF/context/integratedLogServlet.xml
            </param-value>
		</init-param>
		<load-on-startup>2</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>integrated-log</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<session-config>
           <session-timeout>60</session-timeout>
    </session-config>

</web-app>

ContextLoaderListener(applicationContext.xml)은 비즈니스 로직을 정의한 스프링설정 파일이다. DispatcherServlet보다 먼저 로드한다.
DispatcherServlet(integratedLogServlet.xml)은 ContextLoaderListener 에서 생성하는 빈을 참조하여 MVC를 구동한다.
/WEB-INF/context/integratedLogServlet.xml 파일을 생성한다.
스프링프레임워크 MVC를 위한 기본 설정 정보가 들어간다.
mvc:annotation-driven 은 스프링mvc에 필요한 컴포넌트들을 빈으로 등록한다.
mvc:resources 은 정적자원 서비스를 위한 매핑 설정이다.

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:task="http://www.springframework.org/schema/task"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
						http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
						http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
						http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
						http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
						http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd   ">
	<context:component-scan base-package="com.sk"/>
	<!-- 기본 mvc 설정 -->
	<mvc:annotation-driven />

	<!-- jsp 설정 -->
	<beans:bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/view/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<!-- 정적 자원 -->
	<mvc:resources mapping="/**" location="/resources/" />

</beans:beans>

applicationContext.xml은 일단 빈 파일로 생성해둔다.

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:task="http://www.springframework.org/schema/task"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
						http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
						http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
						http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
						http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
						http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd   ">

</beans:beans>

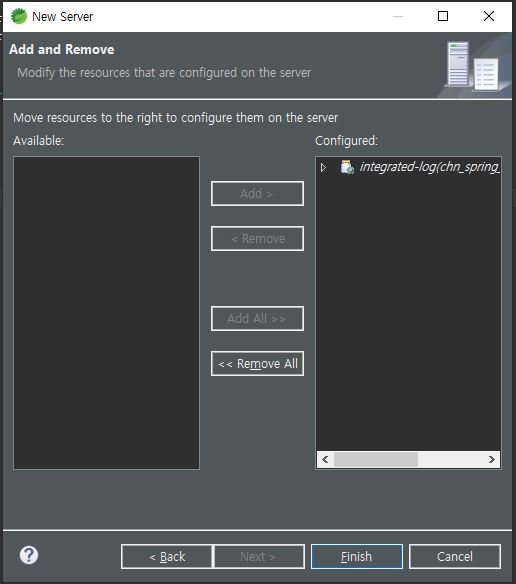

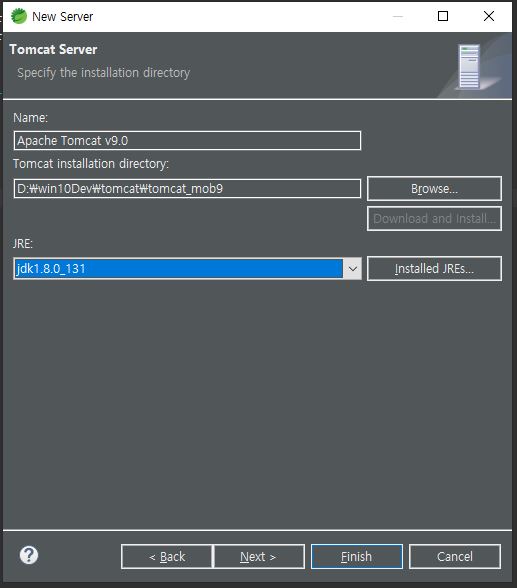

웹어플리케이션을 배포할 톰캣 서버를 등록한다.

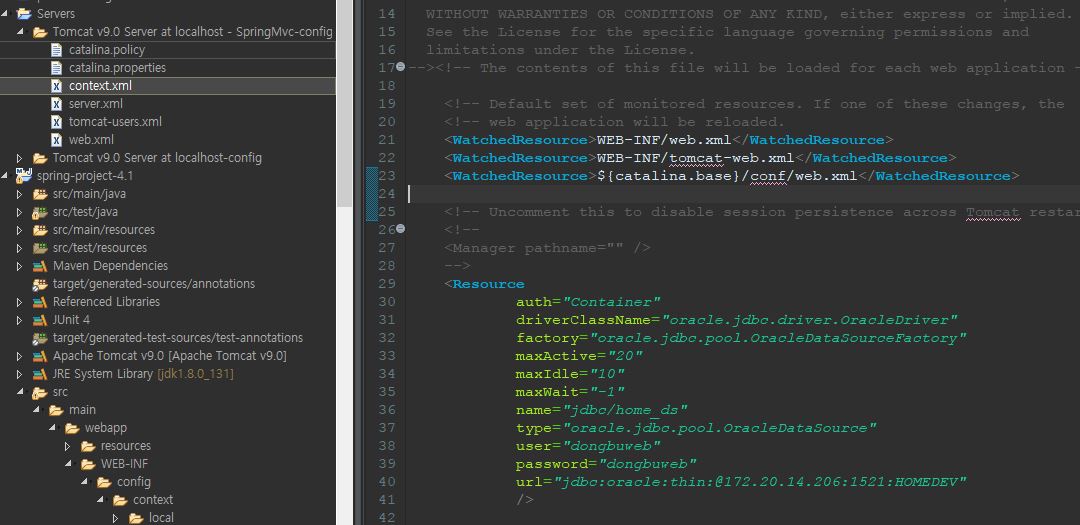

context path 경로를 설정한다. Server.xml 에 Context 요소의 path 속성을 ‘/’ 로 변경
간단한 HelloController 를 작성한다.

package com.sk.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

	@GetMapping("/hello")
	public String hello() {
		return "hello";
	}
}

톰캣을 구동하여 서비스가 잘 올라가는지 확인한다.
http://localhost:8080/hello

mybatis 연동

데이터 도메인을 정의한다.

 CREATE TABLE DONGBUWEB.TMP_USER
(
    U_NO    NUMBER(11) NOT NULL,
    U_NAME  VARCHAR2(60),
    U_JUMIN VARCHAR2(4000),
    U_EMAIL VARCHAR2(100),
    U_DATE  DATE DEFAULT sysdate,
    U_PAY   NUMBER(7,2)
)

 package com.sk.user;

import java.math.BigDecimal;
import java.util.Date;

public class User {

	private BigDecimal no;
	private String name;
	private String jumin;
	private String email;
	private Date date;
	private Integer pay;

	public BigDecimal getNo() {
		return no;
	}
	public void setNo(BigDecimal no) {
		this.no = no;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getJumin() {
		return jumin;
	}
	public void setJumin(String jumin) {
		this.jumin = jumin;
	}
	public String getEmail() {
		return email;
	}
	public void setEmail(String email) {
		this.email = email;
	}
	public Date getDate() {
		return date;
	}
	public void setDate(Date date) {
		this.date = date;
	}
	public Integer getPay() {
		return pay;
	}
	public void setPay(Integer pay) {
		this.pay = pay;
	}
	@Override
	public String toString() {
		return "User [no=" + no + ", name=" + name + ", jumin=" + jumin + ", email=" + email + ", date=" + date
				+ ", pay=" + pay + "]";
	}
}

Mapper 인터페이스를 정의한다.

 package com.sk.user;

import java.util.List;

import org.springframework.stereotype.Repository;

@Repository
public interface UserMapper {

	public User findByNo(Integer no);

	public List<User> findAll();

	public void put(User user);

}

– 비즈니스 로직이 구현될 Service를 생성한다.

package com.sk.user;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class UserService {

	@Autowired UserMapper userMapper;

	public User findByNo(Integer no) {
		return userMapper.findByNo(no);
	}

	public List<User> findAll() {
		return userMapper.findAll();
	}

	public void putUser(User user) {
		userMapper.put(user);
	}

}

웹 요청을 받아서 처리할 컨트롤러를 구현한다.

package com.sk.user;

import java.io.IOException;
import java.util.List;

import org.codehaus.jackson.map.ObjectMapper;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("user")
public class UserController {

	private final Logger log = LoggerFactory.getLogger(getClass());
	private ObjectMapper objectMapper = new ObjectMapper();

	@Autowired UserService userService;

	/**
	 *  request : Get @Pathvariable
	 *  response : view
	 */
	@GetMapping("get/{no}")
	public String getUserPut(@PathVariable("no") Integer number, Model model) {
		User user = userService.findByNo(number);
		model.addAttribute("user", user);
		return "jsp/user";
	}

	/*
	 * request : GET
	 * response : view
	 */
	@GetMapping("put")
	public String getUserPut() {
		return "jsp/put";
	}

	/**
	 * request : POST form parameter
	 * response : view redirect
	 */
	@PostMapping("put")
	public String userPut(User user) {
		userService.putUser(user);
		return "redirect:/user/list";
	}

	/**
	 * request : GET
	 * response : view
	 */
	@GetMapping("list")
	public String userList(Model model) {
		List<User> users = userService.findAll();
		model.addAttribute("users", users);
		return "jsp/list";
	}

	/**
	 * Ajax 요청
	 *   - reuest : parameter
	 *   - response : json
	 */
	@ResponseBody
	@RequestMapping("putAjax")
	public User userPutJson2(@ModelAttribute User user) throws IOException {
		log.info("request queryString,  user={}", user);
		userService.putUser(user);
		return user;
	}

	/*
	 * Ajax 요청
	 *    - request : json
	 *    - response: json
	 */
	@ResponseBody
	@RequestMapping("putAjaxJson")
	public User userPutJson3(@RequestBody String userJson) throws IOException {
		User user = objectMapper.readValue(userJson, User.class);
		log.info("request json, user={}", user);
		userService.putUser(user);
		return user;
	}

	/**
	 * Get Home 페이지
	 */
	@GetMapping("listClientRendering")
	public String list2() {
		return "jsp/list2";
	}

	/*
	 * Ajax 요청
	 *    - response: json
	 */
	@ResponseBody
	@PostMapping("listJson")
	public List<User> userListJson() throws IOException {
		return userService.findAll();
	}

}

/WEB-INF/sqlmap 하위에 UserMapper.xml 파일을 만들어 매핑 쿼리를 작성한다.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sk.user.UserMapper">
	<select id="findAll" resultType="com.sk.user.User">
		SELECT
			 U_NO as "no"
			,U_NAME as "name"
			,U_JUMIN as "jumin"
			,U_EMAIL as "email"
			,U_DATE as "date"
			,U_PAY as "pay"
		FROM TMP_USER
		ORDER BY U_NO DESC
	</select>

	<select id="findByNo" parameterType="Integer" resultType="com.sk.user.User">
		SELECT
			 U_NO as "no"
			,U_NAME as "name"
			,U_JUMIN as "jumin"
			,U_EMAIL as "email"
			,U_DATE as "date"
			,U_PAY as "pay"
		FROM TMP_USER
		WHERE U_NO = #{no}
	</select>

	<insert id="put" parameterType="com.sk.user.User">
		insert into TMP_USER (U_NO, U_NAME, U_JUMIN, U_EMAIL, U_DATE, U_PAY)
			values (TMP_USER_SEQ.NEXTVAL, #{name}, #{jumin}, #{email}, SYSDATE, #{pay})
	</insert>

</mapper>

/WEB-INF/context/mybatis-context.xml 파일을 생성 후, 설정 정보를 작성한다.

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mybatis="http://mybatis.org/schema/mybatis-spring"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:jee="http://www.springframework.org/schema/jee"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
						http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
						http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
						http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd
						http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring.xsd
						">
	<!-- jndi 정보 연결 -->
	<jee:jndi-lookup id="dataSource"
	    jndi-name="jdbc/home_ds"
	    cache="true"
	    resource-ref="true"
	    lookup-on-startup="false"
	    proxy-interface="javax.sql.DataSource" />
	<!--
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
		<property name="driverClassName" value="oracle.jdbc.driver.OracleDriver" />
		<property name="url" value="jdbc:oracle:thin:@172.20.14.206:1521:HOMEDEV" />
		<property name="username" value="dongbuweb" />
		<property name="password" value="dongbuweb" />
	</bean>     -->

	<bean id="sqlSessionFactoryDefault" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<property name="mapperLocations" value="WEB-INF/sqlmap/*.xml" />
		<property name="configLocation" value="classpath:mybatis-config.xml"/>
	</bean>

	<bean id="sqlSessionTemplate" name="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate" destroy-method="clearCache">
		<constructor-arg index="0" ref="sqlSessionFactoryDefault" />
	</bean>

	<!-- Transaction -->
	<bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"/>
	</bean>

	<bean id="mapperScan" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.sk.*"></property>
		<property name="annotationClass" value="org.springframework.stereotype.Repository"></property>
		<property name="sqlSessionFactoryBeanName" value="sqlSessionFactoryDefault"></property>
	</bean>

</beans>

web.xml 파일에 mybatis-context.xml 경로를 추가한다.

<servlet>
		<servlet-name>integrated-log</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>
                /WEB-INF/context/integratedLogServlet.xml
                /WEB-INF/context/mybatis-context.xml
            </param-value>
		</init-param>
		<load-on-startup>2</load-on-startup>
	</servlet>

src/main/resources 하위에 mybatis-config.xml 파일을 생성한다.

 <?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
	<settings>
		<setting name="callSettersOnNulls" value="true" />			<!-- resultType  Map null 매핑처리 -->
		<setting name="mapUnderscoreToCamelCase" value="true" />	<!-- resultType  Map CamelCase 매핑처리 -->
		<setting name="jdbcTypeForNull" value="VARCHAR" />			<!-- 파라미터에 Null 값이 있을 경우 jdbcType=VARCHAR 로 설정 -->
	</settings>
</configuration>

톰캣서버의 context.xml 에 DB 커넥션 풀 리소스를 설정한다.

ojdbc6.jar 파일을 클래스 패스에 추가한다.
list.jsp : List 를 받아와, 화면에 바인딩해줌

 <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<link type="text/css" rel="stylesheet" href="/css/default.css" />
</head>
<body>
	<div class="container">
		<div>
			<h2>사용자 목록</h2>
		</div>
		<table class="tables1 o1 mt10">
			<thead>
				<tr>
					<th>id</th>
					<th>이름</th>
					<th>주민번호</th>
					<th>이메일</th>
				</tr>
			</thead>
			<tbody>
				<c:forEach var="user" items="${users}">
					<tr>
						<td class="als">${user.no}</td>
						<td>${user.name}</td>
						<td>${user.jumin}</td>
						<td>${user.email}</td>
					</tr>
				</c:forEach>
			</tbody>
		</table>
	</div>
</body>
</html>

list2.jsp: 클라이언트 사이드 렌더링 방식으로 구현

 <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<link type="text/css" rel="stylesheet" href="/css/default.css" />
</head>
<body>
	<div class="container">
		<div>
			<h2>사용자 목록</h2>
		</div>
		<table class="tables1 o1 mt10">
			<thead>
				<tr>
					<th>id</th>
					<th>이름</th>
					<th>주민번호</th>
					<th>이메일</th>
				</tr>
			</thead>
			<tbody>
				<tr class="template">
					<td class="als"><span class="no" >1</span></td>
					<td><span class="name" >2</span></td>
					<td><span class="jumin" >3</span></td>
					<td><span class="email" >4</span></td>
				</tr>
			</tbody>
		</table>
	</div>
</body>
<script src="/js/jquery-3.4.1.min.js"></script>
<script type="text/javascript">

function send(trid, callbackFunc) {

    let _options = {
        dataType: 'json',
        method: 'POST',
        contentType: 'application/json; charset=utf-8'
    };

    $.ajax({
        url: trid,
        dataType: _options.dataType,
        method: _options.method,
        contentType: _options.contentType,
        async: true,
        cache: false,
        //data: strData,
        success: function (response) {
        	callbackFunc(response);
        },
        error: function (e) {
            alert(e.responseText);
        }
    });
}

function resultRendering(response){

	const tbody = $('tbody');
	const $tr = $('.template').clone(true);

	for(var i=0; i<response.length; i++){

		const $tr_i = $tr.clone(true);
		$tr_i.find('.no').text(response[i].no);
		$tr_i.find('.name').text(response[i].name);
		$tr_i.find('.jumin').text(response[i].jumin);
		$tr_i.find('.email').text(response[i].email);
		tbody.append($tr_i);
	}
}

send('/user/listJson', resultRendering);


</script>
</html>

user.jsp : 1명의 사용자 정보를 보여주는 화면
date 타입은 로 포맷팅

 <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<link type="text/css" rel="stylesheet" href="/css/default.css" />
</head>
<body>
	<div class="container">
		<div>
			<h2>사용자 상세</h2>
		</div>
		<table class="tables1 o1 mt10">
			<thead>
				<tr>
					<th>id</th>
					<th>이름</th>
					<th>주민번호</th>
					<th>이메일</th>
					<th>등록일</th>
					<th>페이</th>
				</tr>
			</thead>
			<tbody>
				<tr>
					<th>${user.no}</th>
					<th>${user.name}</th>
					<th>${user.jumin}</th>
					<th>${user.email}</th>
					<th><fmt:formatDate value="${user.date}" pattern="yyyy/MM/dd"/>

					</th>
					<th><fmt:formatNumber value="${user.pay}" pattern="###,###,##0"/>원</th>
				</tr>
			</tbody>
		</table>
	</div>
</body>
</html>

put.jsp
데이터 서버 전송을 3가지 방식으로 구현함
첫번째는 form submit : form 에 action 속성을 생략하면, 동일 url 로 post 전송이 된다.
두번째는 순수 자바스크립트만을 사용하여 ajax 방식으로 전송함
onreadystatechange는 XMLHttpRequest 상태가 변할때, 호출하는 함수 지정
상태는 1(open메소드 성공), 2(모든 요청에 대한 응답 도착), 3(요청한 데이터 처리중)등, 4는 요청한 데이터의 처리가 완료되어 응답할 준비가 됨
세번째는 jquery ajax 방식이다.

 <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<link type="text/css" rel="stylesheet" href="/css/default.css" />
</head>
<body>
	<div class="container">
		<div>
			<h2>사용자 등록 폼</h2>
		</div>
		<h4>사용자 입력</h4>
		<form method="post">
			<div class="boxs mt5 fss14 cls2">
				<label for="name">이름</label> <input class="is2" type="text" name="name" id="name" placeholder="이름을 입력하세요">
			</div>
			<div class="boxs mt5 fss14 cls2">
				<label for="jumin">주민번호</label> <input class="is2" type="text" name="jumin" id="jumin" placeholder="주민번호를 입력하세요">
			</div>
			<div class="boxs mt5 fss14 cls2">
				<label for="email">이메일</label> <input class="is2" type="text" name="email" id="email" placeholder="이메일을 입력하세요">
			</div>
			<div class="boxs mt5 fss14 cls2">
				<label for="pay">페이</label> <input class="is2" type="text" name="pay" id="pay" placeholder="이메일을 입력하세요">
			</div>
			<hr>
			<div>
				<div>
					<button class="btns a" type="submit">등록</button>
					<button class="btns a" onclick="location.href='/user/list'" type="button">취소</button>
				</div>
			</div>
		</form>
		<br>
		<div>
			<button class="btns a" id="submit_ajax_js">등록 Ajax For JS</button>
		</div>
		<br>
		<div>
			<button class="btns a" id="submit_ajax_jquery">등록 Ajax For JQuery</button>
		</div>
		<div>
			<p id="saveName"></p>
			<p id="saveJumin"></p>
			<p id="saveEmail"></p>
		</div>
	</div>
	<!-- /container -->
</body>
<script src="/js/jquery-3.4.1.min.js"></script>
<script>
/* [Ajax javascript]*/
const httpRequest = new XMLHttpRequest();
const submitAjaxJsBtn = document.querySelector('#submit_ajax_js');
submitAjaxJsBtn.addEventListener('click', putRequest);


function putRequest(){

	const name = document.querySelector('#name').value;
	const jumin = document.querySelector('#jumin').value;
	const email = document.querySelector('#email').value;
	const pay = document.querySelector('#pay').value;

	httpRequest.onreadystatechange = alertContents;
	httpRequest.open('POST', '/user/putAjax');
	httpRequest.setRequestHeader('Content-Type', 'application/x-www-form-urlencoded; charset=UTF-8');
	httpRequest.send('name='+name+"&jumin="+jumin+"&email="+email+"&pay="+pay);

}

function alertContents() {
	try {
		if (httpRequest.readyState == XMLHttpRequest.DONE) { //4인 경우
			if (httpRequest.status == 200) {
				alert(httpRequest.responseText);
			} else {
				alert('There was a problem with the request.');
			}
		}
	} catch (e) {
		alert('Caught Exception: ' + e.description)
	}
}


// 세번째 방식 : jquery ajax
const submitAjaxJQueryBtn = $('#submit_ajax_jquery');
submitAjaxJQueryBtn.on('click', function(){

	let param = {
			name : $('#name').val(),
			jumin : $('#jumin').val(),
			email : $('#email').val(),
			pay : $('#pay').val()
	}

	send('/user/putAjaxJson', param, resultRendering); /* object to queryString => $.param(param) */

});

function resultRendering(response){
	$('#saveName').html(response.name);
	$('#saveJumin').html(response.jumin);
	$('#saveEmail').html(response.email);
}

function send(trid, sendData = {}, callbackFunc) {

    let _options = {
        dataType: 'json',
        method: 'POST',
        contentType: 'application/json; charset=utf-8'
    };
    let strData;

    if (typeof sendData === 'object') {
        strData = JSON.stringify(sendData);
    }
    else {
        strData = sendData;
    }
    $.ajax({
        url: trid,
        dataType: _options.dataType,
        method: _options.method,
        contentType: _options.contentType,
        async: true,
        cache: false,
        data: strData,
        success: function (response) {
        	callbackFunc(response);
        },
        error: function (e) {
            alert(e.responseText);
        }
    });
}

</script>

</html>

[spring] 스프링 프로젝트 생성하기(mybatis-jsp-oracle)

🦥 java maven project 생성

mybatis 연동

Reference

Leave a comment

You may also enjoy

[java] junit and mockito

[java] 자바 기본 문법 모음

[java] 이것저것,,

[spring] 스프링부트 학습-1
